BLDC Motor [ DL-95820 / DL-95835 ] Brushless DC Motor BLDC无刷直流马达DL-95820/DL-95835
FEATURE 性能
◆ Application : AIR PURIFIER, AIR BLOWER, FAN etc.
◆ Input Voltage : DC 310V
◆ Motor type : Brushless DC Motor
◆ Drive type : Sensor & Drive IC
◆ Output Rotation : C.W or C.C.W
◆ Protection : Current Limit
◆ Insulation Class : E (120℃)
◆ Frame Material : G.I(PRESS)
◆ Lead wire exit : Variable
SPECIFICATION 规格说明
model
|
Voltage
[motor][v]
|
Voltage
[controller
or hall IC][V]
|
Torque
[kg.cm]
|
Input
Watts[Wi]
|
Output
Watts[Wo]
|
Speed
[r/min]
|
Frame
material
|
status
|
DL-95820 TYPE
|
DC 310
|
DC 15
|
6
|
~91
|
~68
|
~1100
|
G.I[PRESS]
|
Present
|
DL-95835 TYPE
|
DC 310
|
DC 15
|
12
|
~173
|
~130
|
~1050
|
G.I[PRESS]
|
Present
|

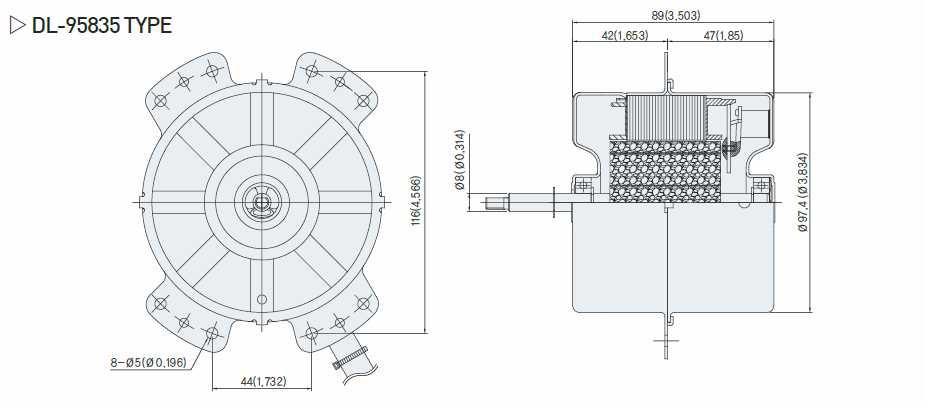

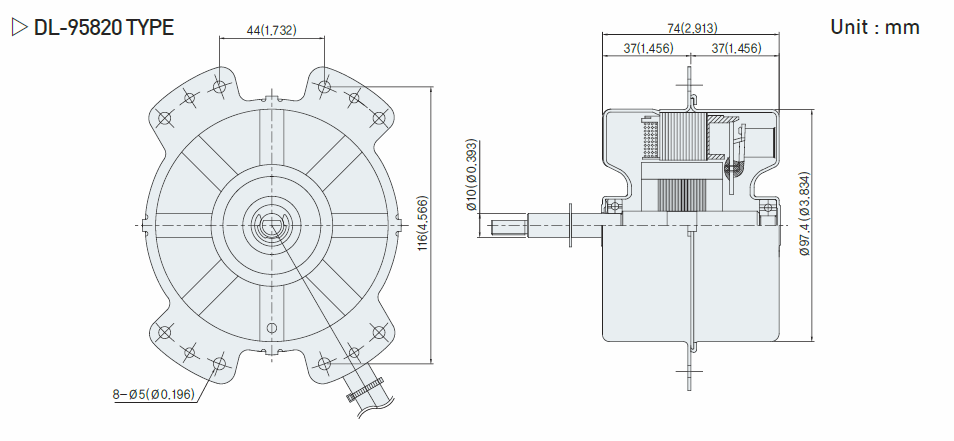

DIMENSIONS
